Thermal Imager Camera
TIM03 Series
Specifications

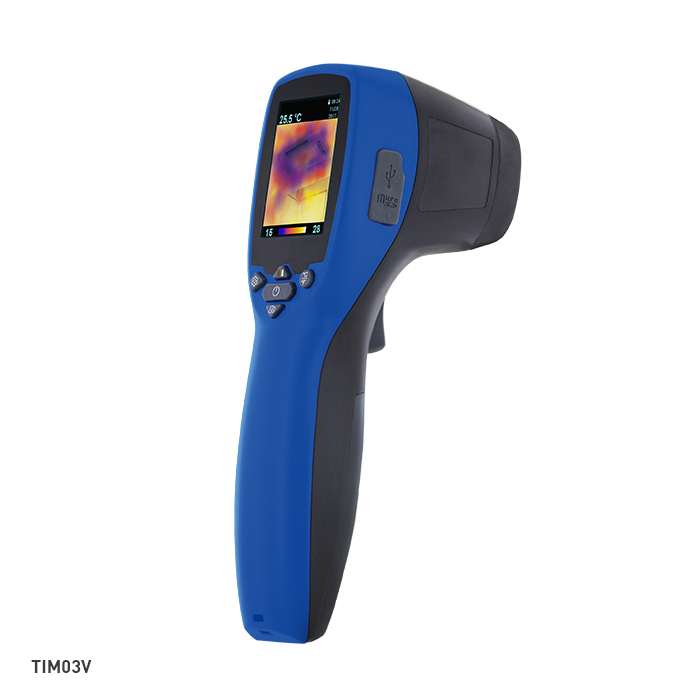

〈TIM03V〉
〈TIM03V〉
- Measurement Range: -20~350°C(-4~662°F)
- Infrared Accuracy: ±2% of reading, or 2°C(4°F) whichever is greater
- Thermal Image Resolution: 32 x 32
- Visual Image Resolution: 640 x 480
- Thermal Sensitivity: 0.1°C(0.1°F)
- Field of View: 33 x 33 deg
- Measurement Range: -20~250°C(-4~482°F)
- Infrared Accuracy: ±2% of reading, or 2°C(4°F) whichever is greater
- Thermal Image Resolution: 32 x 31
- Thermal Sensitivity: 0.1°C(0.1°F)
- Field of View: 40 x 40 deg
-
Micro SD Card
-
USB
-
Splash Proof IP54
Introduction
-
Feature
- Fully Automatic Measurement
- Focus Free
- Outstanding Measurement / Accuracy
- Micro SD Card Storage
- IP54 Splash Proof Classification
- Reporting Software Included <TIM03>
- Automatically / Manually Power Off
Fusion
<TIM03V>
Visual
<TIM03V>
Real Image with Min/ Max/
Center temp<TIM03> -
Applications
Automation / Process Control
Building diagnostics /
Occupational Safety and Health
Electrical / Mechanical
Science / R&D
Solar
HVAC
-
* Specifications are subject to change without noticeTIM03V TIM03 Measurement Range -20~350°C (-4~662°F) -20~250°C (-4~482°F) Infrared Accuracy ±2% of reading, or 2°C(4°F) whichever is greater Thermal Image Resolution 32 X 32 32 X 31 Visual Image Resolution 640 X 480 ─ For more model information please scroll to the Technology Support and view in Catalogs.
