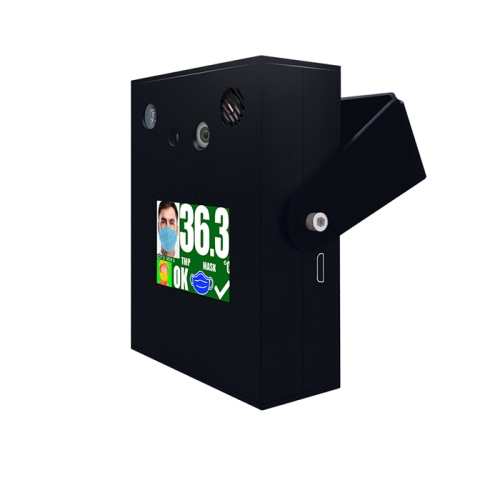

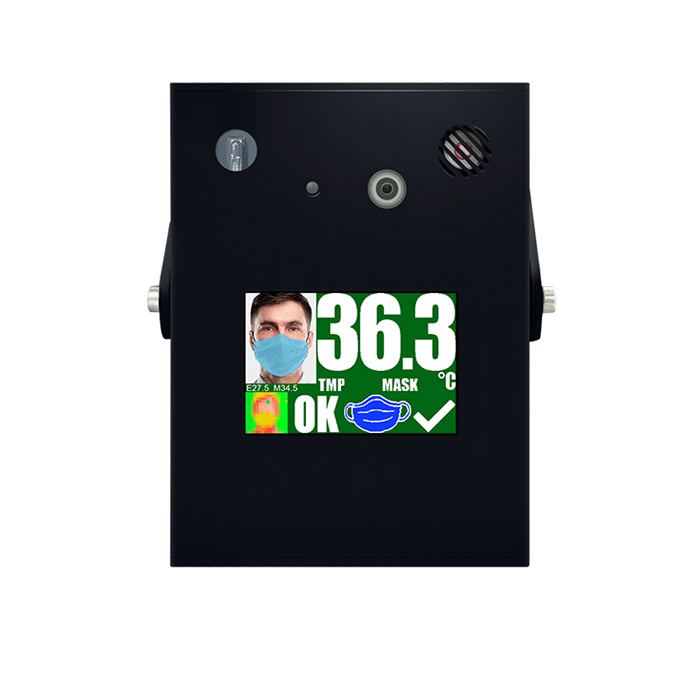

Thermal Imager Camera
TIM05FL Series
Specifications
- Visual Image Resolution: 1296 x 732
- Visual Image Frame rate: 25Hz
- Thermal Image Resolution: 32 X 32
- Thermal image output screen resolution: 96 X 96
- Thermal Image Frame rate: 7Hz
- Accuracy:
+/-0.4°C (32.72°F) at detection distance of 2m
+/-0.3°C (32.54°F) at detection distance of 1m
+/-0.5°C (32.90°F) at detection distance of 3m - Measurement Range: 16~42°C(60.8~107.6°F)
- Operating Range: 15~45°C(59~113°F)
If the ambient temperature >45°C, it will alert warning
- LCD: 3.5 inch TFT, Resolution: 480 x 320
- Output: HDMI
- Power: 12 DC/ 2A
- Dimensions:
Thermometer: 149.4 x 180 x 51 mm(5.9 × 7.1 × 2 inch)
Remote Control: 86 x 40 x 6 mm(3.4 × 1.6 × 0.2 inch)
Introduction
-
Feature
- Facial recognition with mask detection
- Contactless temperature check at accuracy of measurement
- High temperature alert function
- Replace manual temperature measurement in streamlining the process

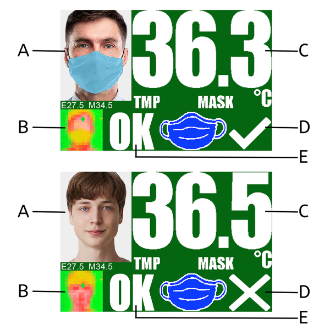

LCD
A : Live monitor of the target
B : Thermal image
C : Live temperature
D : Mask detection message
E : Temperature message

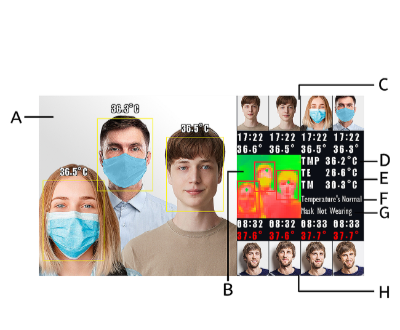

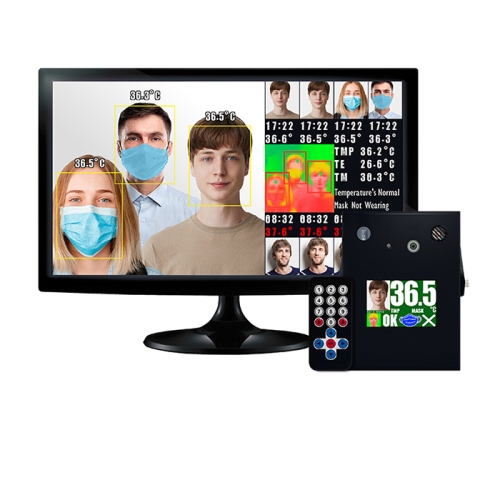

Monitor
A : Live temperature monitor
B : Thermal image
C : Last readings(Time & Temperature)
D : Rapid temperature of the target
E : System parameters
F: Temperature message
G: Mask detection message
H: The latest 4 readings of high temperature ≥37.5°C(99.5°F) -
Applications
Public Transport
Office / Warehouse
Cinema
Market / Mall
Lobby / Hospital
Seminar / Hall
