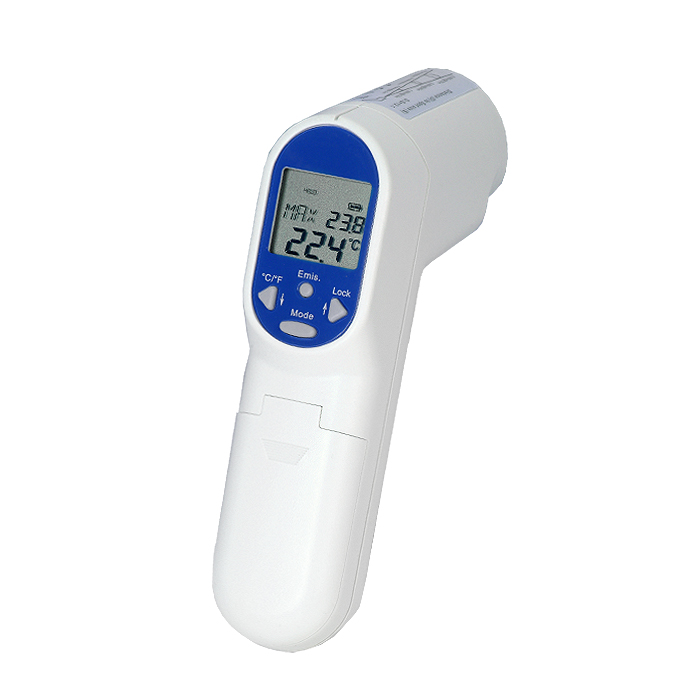

Gun Type
TN408LC/TN409LC Series
Specifications
- Measurement Range:
〈TN408LC〉-60~500°C(-76~932°F) /〈TN409LC〉-60~760°C(-76~1400°F)
- Full Range Accuracy: ±2% of reading or 2°C(4°F) whichever is greater
- Distance : Spot: 12 : 1
- Thermocouple Probe: Small Socket, K type, 12 minutes auto power off
- Measurement Range*: -60~1400°C(-83.2~1999°F)
- Probe Accuracy: ±1% of reading or 1°C(1.8°F) whichever is greater(Test under Tamb=23±6°C)
Introduction
-
Feature
- IR-SoC technology (Infrared System on Chip) and Batch Calibration technology drive the dimensions and cost to the lowest limits
- Large LCD Screen, with bright amber color Backlight
- User Friendly Interface (with Emissivity Fool Proof Function)
- Auto Power Off: 15sec
- Precise K type Thermocouple Thermometer available (optional)
User Friendly Interface
Laser Sight
Built-in Socket
(optional)
A varies of K-type
TC probes -
Applications
HACCP
Automation
HVAC
Electric Power
Industry
Laboratory
-
* Specifications are subject to change without noticeTN408LC TN409LC Measurement Range -60~500°C(-76~932°F) -60~760°C(-76~1400°F) Full Range Accuracy ±2% of reading or 2°C(4°F) whichever is greater ±2% of reading or 2°C(4°F) whichever is greater Distance : Spot 12:1 12:1 Thermocouple Probe Small Socket, K type, 12 minutes auto power off Measurement Range* -64~1400°C(-83.2~1999°F) Probe Accuracy ±1% of reading or 1°C(1.8°F) whichever is greater(Test under Tamb=23±6°C) For more model information please scroll to the Technology Support and view in Catalogs.
