Gun Type
TN41A Series_3 Key
Specifications

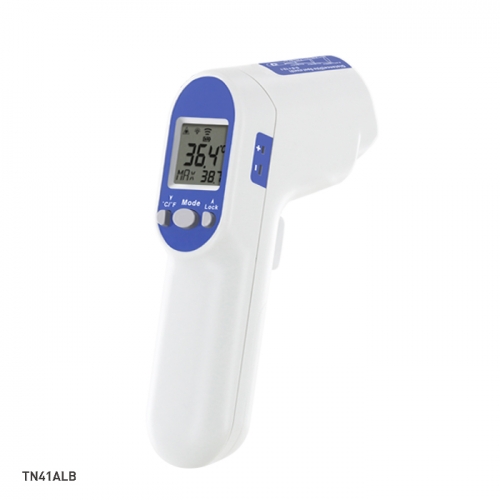

〈TN41ALB〉
〈TN41ALB〉
- Measurement Range: -60~760°C(-76~1400°F)
- Distance : Spot: 30 : 1
- Measurement Range: -60~500°C(-76~932°F)
- Distance : Spot: 12 : 1
- Full Range Accuracy:
≥0°C: ±2% of reading or 2°C(4°F) whichever is greater
<0°C: ±(2°C + 0.05/°C)°C
- Thermocouple Probe: Small Socket, K type, 12 minutes auto power off
- Measurement Range*: -64~1400°C(-83.2~1999°F)
- Probe Accuracy: ±1% of reading or 1°C(1.8°F) whichever is greater(Test under Tamb=23±6°C)
-
Thermocouple Socket
-
BAR Display
-
Backlight
Introduction
-
Feature
- National Lab Standard Traceable
- Various Measurement Range & DS Ratio for option
- Precise K type Thermocouple Thermometer available (optional)
- Color bar displays temperature in Max/Min mode
- Large LCD Screen, with bright amber color backlight
- New Low voltage technology, no more 9V battery
Built-in Socket
User Friendly Interface

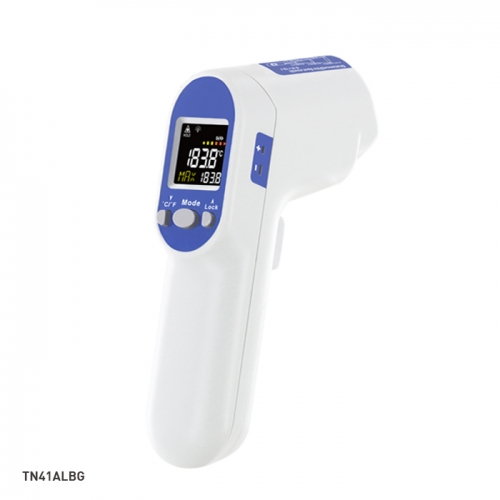

Color Bar Display
( Model with G ) -
Applications
Automation
HACCP
HVAC
Electric Power
Industry
Laboratory
-
* Specifications are subject to change without noticeTN41ALB TN41ALC TN41ALD Measurement Range -60~760°C(-76~1400°F) -60~500°C(-76~932°F) -60~625°C(-76~1157°F) Full Range Accuracy ≥0°C : ±2% of reading or 2°C(4°F) whichever is greater
<0°C : ±(2°C+0.05/°C)°CDistance : Spot 30:1 12:1 16:1 Thermocouple Probe Small Socket, K type, 12 minutes auto power off Measurement Range* -64~1400°C(-83.2~1999°F) Probe Accuracy ±1% of reading or 1°C(1.8°F) whichever is greater(Test under Tamb=23±6°C) For more model information please scroll to the Technology Support and view in Catalogs.
