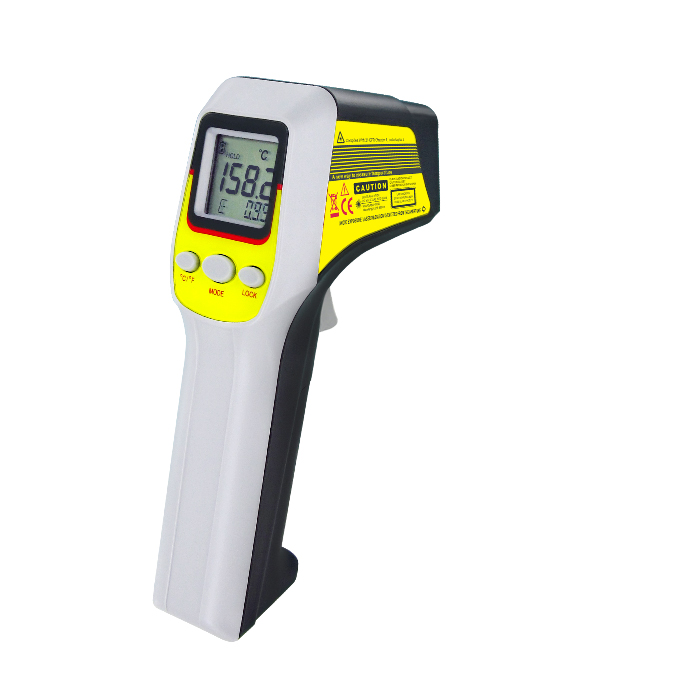

Gun Type
TN430 Series
Specifications
〈TN430L1〉
〈TN430L1〉
- Measurement Range: -50~460°C(-58~860°F)
- Full Range Accuracy:
≥0°C: ±2.5% of reading or 2.5°C(4.5°F) whichever is greater
<0°C: ±(2.5°C + 0.05/°C)°C
- Distance : Spot: 12 : 1
- Measurement Range: -60~550°C(-76~1022°F)
- Full Range Accuracy:
≥0°C: ±2% of reading or 2°C(4°F) whichever is greater
<0°C: ±(2°C + 0.05/°C)°C
- Distance : Spot: 12 : 1
- Thermocouple Probe: Small Socket, K type, 12 minutes auto power off
- Measurement Range*: -64~1400°C(-83.2~2552°F)
- Probe Accuracy: ±1% of reading or 1°C(1.8°F) whichever is greater(Test under Tamb=23±6°C)
-
Thermocouple Socket
-
Last Reading
-
Backlight
Introduction
-
Feature
- User Friendly Interface
- High DS (Distance to Spot) Ratio up to 12:1
- Real time maximum temperature reading<TN430L0/ TN430L1>
- Recall the last reading
- Built-in Socket <TN430LC>
- Large LCD Screen, with bright amber color Backlight
- Auto Power Off: 15 Seconds
Built-in Socket
<TN430LC>
Bright amber
color backlight -
Applications
Automation
Electric Power
HACCP
HVAC
Industry
Laboratory
-
* Specifications are subject to change without noticeTN430L0 TN430L1 TN430L2 TN430LC Measurement Range -38~365°C(-36.4~689°F) -50~460°C(-58~860°F) -60~550°C(-76~1022°F) -60~550°C(-76~1022°F) Full Range Accuracy ≥0°C: ±2.5% of reading or 2.5°C(4.5°F)
whichever is greater
<0°C: ±(2.5°C+0.05/°C)°C≥0°C: ±2% of reading or 2°C(4°F)
whichever is greater
<0°C: ±(2°C+0.05/°C)°C≥0°C: ±2% of reading or 2°C(4°F)
whichever is greater
<0°C: ±(2°C+0.05/°C)°CDistance : Spot 12:1 12:1 12:1 Thermocouple Probe ─ Small Socket, K type, 12 minutes
auto power offMeasurement Range* ─ -64~1400°C(-83.2~2552°F) Probe Accuracy ─ ±1% of reading or 1°C(1.8°F) whichever
is greater(Test under Tamb=23±6°C)For more model information please scroll to the Technology Support and view in Catalogs.
