Gun Type
TN433/TN43C Series
Specifications
〈TN433L1/ TN43CL1〉
〈TN433L1/ TN43CL1〉
- Measurement Range: -50~460°C(-58~860°F)
- Distance : Spot: 12 : 1
- Full Range Accuracy:
≥0°C: ±2.5% of reading or 2.5°C(4.5°F) whichever is greater
<0°C: ±(2.5°C + 0.05/°C)°C
-
Last Reading
-
Backlight
Introduction
-
Feature
- User Friendly Interface

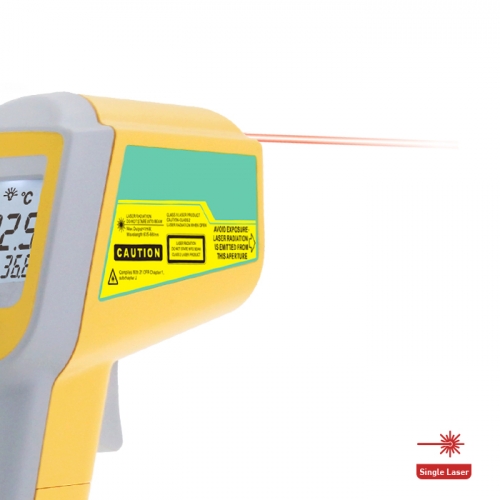

- Laser Sight for better targeting
- High DS (Distance to Spot) Ratio up to 12:1
- Real time maximum temperature reading
- Recall the last reading
- Large LCD Screen with bright White Backlight
- Auto Power Off: 15 Seconds
Recall the
Last Reading
Comfortable
Ergonomic Handle
Bright White Backlight

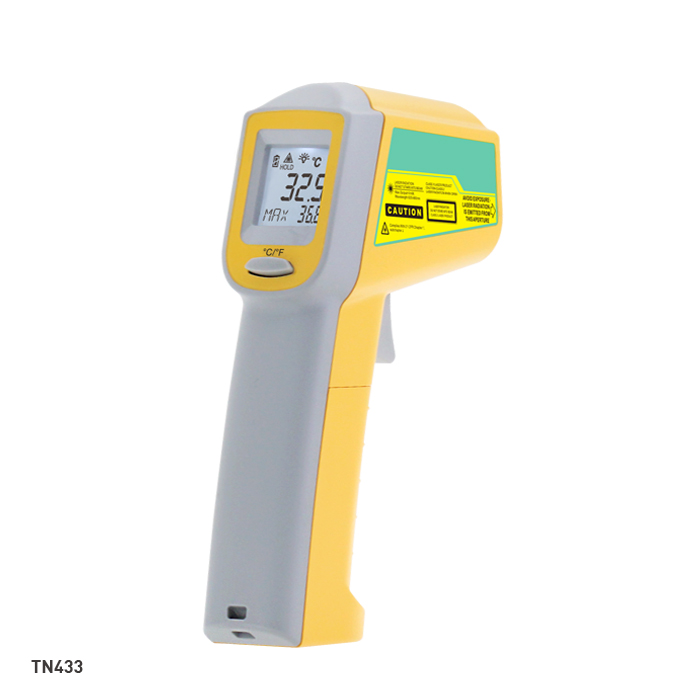

<TN433>

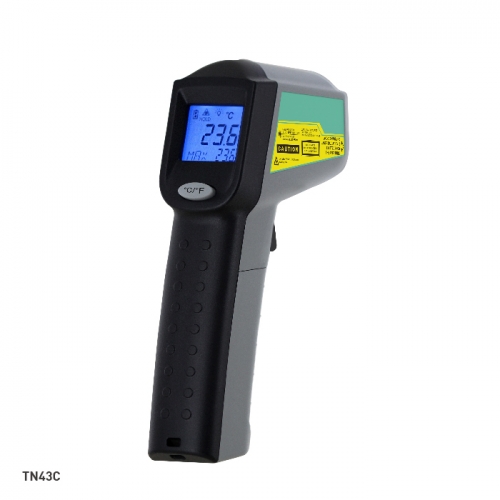

Bright Blue Backlight
<TN43C> -
Applications
Automation
Electric Power
HACCP
Industry
Laboratory
HVAC
-
* Specifications are subject to change without noticeTN433L0/TN43CL0 TN433L1/TN43CL1 TN433L2/TN43CL3 Measurement Range -38~365°C(-36.4~689°F) -50~460°C(-58~860°F) -60~550°C(-76~1022°F) Full Range Accuracy ≥0°C: ±2.5% of reading or 2.5°C(4.5°F)
whichever is greater
<0°C: ±(2.5°C+0.05/°C)°C≥0°C: ±2.5% of reading or 2.5°C(4.5°F)
whichever is greater
<0°C: ±(2.5°C+0.05/°C)°C≥0°C: ±2% of reading or 2°C(4°F)
whichever is greater
<0°C: ±(2°C+0.05/°C)°CDistance : Spot 12:1 12:1 12:1 For more model information please scroll to the Technology Support and view in Catalogs.
