Gun Type
TN497/TN496 Series
Specifications

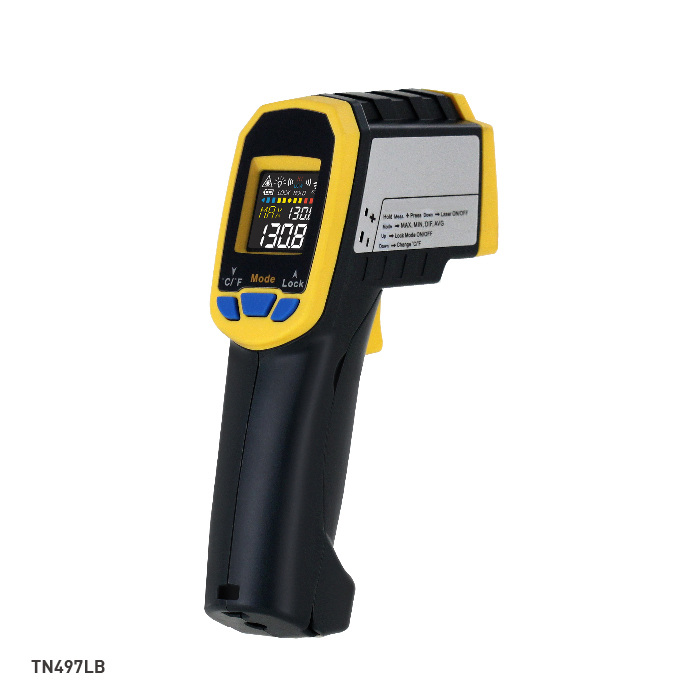

〈TN497LB/TN496LB〉
〈TN497LB/TN496LB〉
- Measurement Range: -60~760°C(-76~1400°F)
- Distance : Spot: 30 : 1
- Measurement Range: -60~550°C(-76~1022°F)
- Distance : Spot: 12 : 1
- Full Range Accuracy:
≥0°C: ±2% of reading or 2°C(4°F) whichever is greater
<0°C: ±(2°C + 0.05/°C)°C
- Thermocouple Probe: Small Socket, K type, 12 minutes auto power off
- Measurement Range*: -64~1400°C(-83.2~2552°F)
- Probe Accuracy: ±1% of reading or 1°C(1.8°F) whichever is greater(Test under Tamb=23±6°C)
Introduction
-
Feature
- Infrared up to 760°C (1400°F)

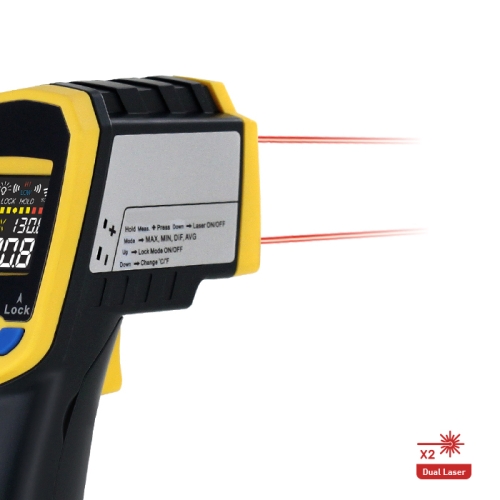

- Laser Sight for better targeting
- High DS (Distance to Spot) Ratio up to 30:1
- Color Bar Displays Temperature in Max/Min mode <TN497>
- Rugged Design- Shatterproof to 2 M
- Tripod mount on the bottom
- Mini Thermocouple Socket up to 1400°C(optional)
- Best Cost/Performance Ratio
- White LED Flashlight (optional)
Built-in Socket
Rugged Design-
Shatterproof to 2 M
Color Bar Display
<TN497>
Tripod Mount
-
Applications
Electric Power
Fire Protection
Laboratory
HVAC
Automation
HACCP
-
* Specifications are subject to change without noticeTN497LB/TN496LB TN497LC/TN496LC TN497LD/TN496LD Measurement Range -60~760°C(-76~1400°F) -60~550°C(-76~1022°F) -60~625°C(-76~1157°F) Full Range Accuracy ≥0°C: ±2% of reading or 2°C(4°F) whichever is greater
<0°C: ±(2°C+0.05/°C)°CDistance : Spot 30:1 12:1 16:1 Thermocouple Probe Small Socket, K type, 12 minutes auto power off Measurement Range* -64~1400°C(-83.2~2552°F) Probe Accuracy ±1% of reading or 1°C(1.8°F) whichever is greater(Test under Tamb=23±6°C) For more model information please scroll to the Technology Support and view in Catalogs.
