Gun Type
TN49S Series
Specifications

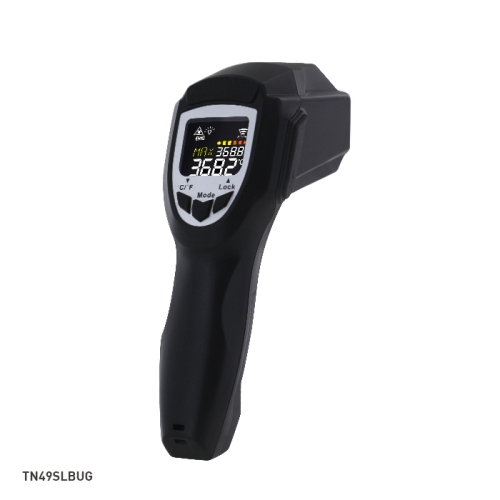

〈TN49SLBUG〉
〈TN49SLBUG〉
- Measurement Range: -60~760°C(-76~1400°F)
- Distance : Spot: 30 : 1
- Measurement Range: -60~550°C(-76~1022°F)
- Distance : Spot: 12 : 1
- Full Range Accuracy:
≥0°C: ±2% of reading or 2°C(4°F) whichever is greater
<0°C: ±(2°C + 0.05/°C)°C
- Thermocouple Probe: Small Socket, K type, 12 minutes auto power off
- Measurement Range*: -64~1400°C(-83.2~2552°F)
- Probe Accuracy: ±1% of reading or 1°C(1.8°F) whichever is greater(Test under Tamb=23±6°C)
-
Thermocouple Socket
-
BAR Display
-
Backlight
-
USB
-
Splash Proof IP54
Introduction
-
Feature
- Infrared up to 760°C (1400°F)
- IP54 Splash Proof Classification

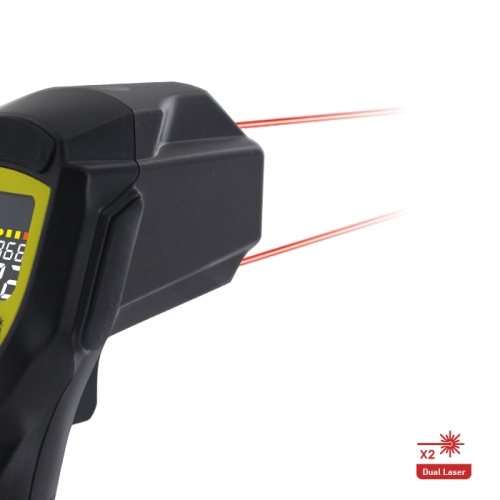

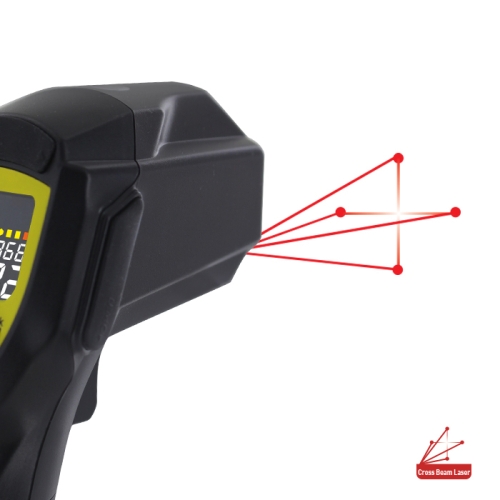

- Dual Laser / Dual Beam Laser(Model with Y) for better targeting
- High DS (Distance to Spot) Ratio up to 30:1
- Color bar displays temperature in Max/Min mode (optional)
- USB Function
Built-in Socket
User Friendly Interface
Color Bar Display
(Model with G)
Blue Backlight
-
Applications
Steel-making
Electric Power
Petrochemical
-
* Specifications are subject to change without noticeTN49SLBU TN49SLCU Measurement Range -60~760°C (-76~1400°F) -60~550°C (-76~1022°F) Full Range Accuracy ≥0°C: ±2% of reading or 2°C(4°F) whichever is greater
<0°C: ±(2°C+0.05/°C)°CDistance : Spot 30:1 12:1 Thermocouple Probe Small Socket, K type, 12 minutes auto power off Measurement Range* -64~1400°C(-83.2~2552°F) Probe Accuracy ±1% of reading or 1°C(1.8°F) whichever is greater(Test under Tamb=23±6°C) For more model information please scroll to the Technology Support and view in Catalogs.
