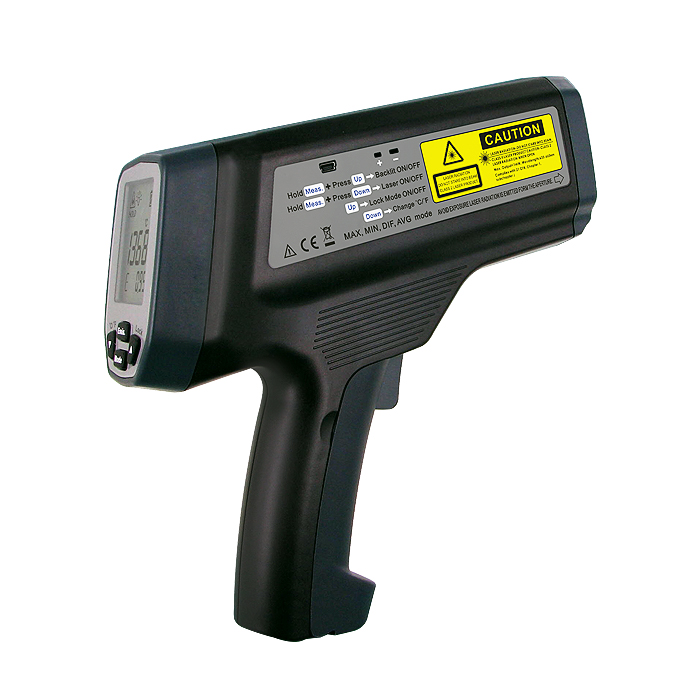

Gun Type
TN568 Series
Specifications
- Measurement Range: 100~1800°C(212~3272°F)
- Full Range Accuracy: ±2% of reading
- Distance : Spot: 100 : 1
- Thermocouple Probe: Small Socket, K type, 12 minutes auto power off
- Measurement Range*: -64~1400°C(-83.2~2552°F)
- Probe Accuracy: ±1% of reading or 1°C(1.8°F) whichever is greater(Test under Tamb=23±6°C)
-
Thermocouple Socket
-
Memory
-
Backlight
-
USB
Introduction
-
Feature
- Wide Measurement Range: Infrared up to 2400°C (4352°F)
- High DS (Distance to Spot) Ratio 100:1

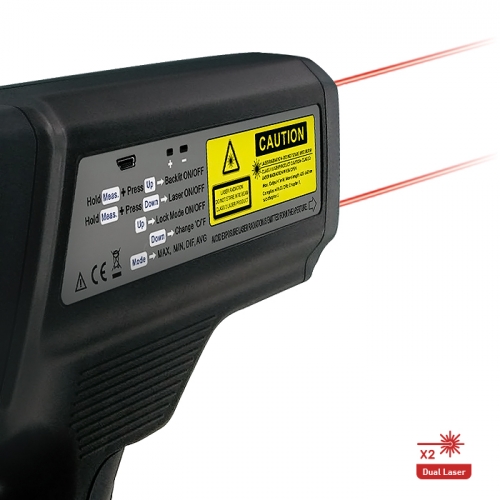

- Dual Laser Points for the Target Spot Size
- Under Memory Mode, record and display the specific temperature with emissivity
- USB Function (optional)
- Mini Thermocouple Socket up to 1400°C
- Large LCD display with Power Backlight
- Laser and Backlight On/Off Control
Built-in Socket
USB Function
(optional)
Memory Mode
Tripod Mount
-
Applications
Metal Processing
Electric Power
Petrochemical
-
* Specifications are subject to change without noticeTN568LC1 TN568LC2 Measurement Range 100~1800°C(212~3272°F) 200~2400°C(392~4352°F) Full Range Accuracy ±2% of reading ±2% of reading Distance : Spot 100:1 100:1 Thermocouple Probe Small Socket, K type, 12 minutes auto power off Measurement Range* -64~1400°C(-83.2~2552°F) Probe Accuracy ±1% of reading or 1°C(1.8°F) whichever is greater(Test under Tamb=23±6°C) For more model information please scroll to the Technology Support and view in Catalogs.
