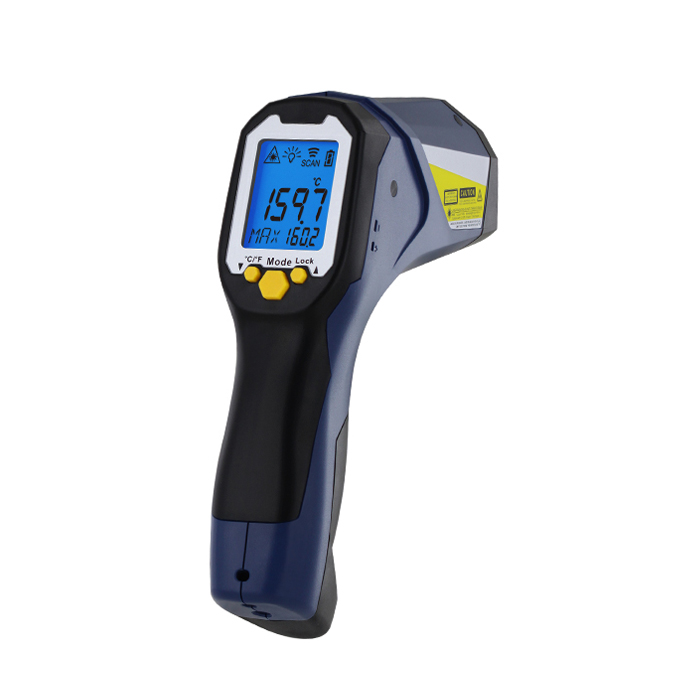

Gun Type
TN758 Series
Specifications
〈TN758LB〉
〈TN758LB〉
- Measurement Range: 100~2000°C(212~3632°F)
- Full Range Accuracy: ±2% of reading
- Distance : Spot: 75 : 1
- Measurement Range: -35~1600°C(-31~2912°F)
- Full Range Accuracy:
≥0°C: ±2% of reading or 2°C(4°F) whichever is greater
<0°C: ±(2°C+0.05/°C)°C
- Distance : Spot: 60 : 1
- Thermocouple Probe: Small Socket, K type, 12 minutes auto power off
- Measurement Range*: -64~1400°C(-83.2~2552°F)
- Probe Accuracy: ±1% of reading or 1°C(1.8°F) whichever is greater(Test under Tamb=23±6°C)
-
Thermocouple Socket
-
Memory
-
BAR Display
-
Backlight
-
Micro SD Card
-
USB
Introduction
-
Feature
- Wide Measurement Range: Infrared up to 2000°C (3632°F)
- High DS (Distance to Spot) Ratio 75:1

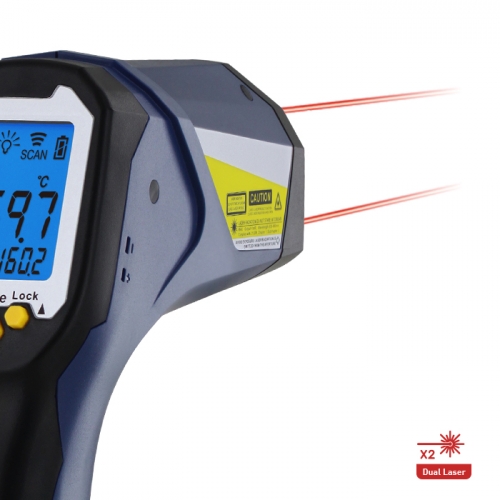

- Dual Laser Points for the Target Spot Size
- Color bar displays temperature in Max/Min mode (Model with G)
- Output interface: SPI、USB、SD Card Storage
Built-in Socket
USB Function / SD Card
Memory Mode
Color Bar Display
(Model with G) -
Applications
Metal Processing
Electric Power
Petrochemical
-
* Specifications are subject to change without noticeTN758LB TN758LC Measurement Range 100~2000°C(212~3632°F) -35~1600°C(-31~2912°F) Full Range Accuracy ±2% of reading ≥0°C: ±2% of reading or 2°C(4°F)
whichever is greater
<0°C: ±(2°C+0.05/°C)°CDistance : Spot 75:1 60:1 Thermocouple Probe Small Socket, K type, 12 minutes auto power off Measurement Range* -64~1400°C(-83.2~2552°F) Probe Accuracy ±1% of reading or 1°C(1.8°F) whichever is greater(Test under Tamb=23±6°C) For more model information please scroll to the Technology Support and view in Catalogs.
