Gun Type
TN768 Series
Specifications
〈TN768LB〉
〈TN768LB〉
- Measurement Range: 100~1800°C(212~3272 °F)
- Full Range Accuracy: ±2% of reading
- Distance : Spot: 75 : 1
- Measurement Range: -60~1500°C(-76~2732 °F)
- Full Range Accuracy: ±2% of reading or 2°C(4°F) whichever is greater
- Distance : Spot: 50 : 1
- Thermocouple Probe: Small Socket, K type, 12 minutes auto power off
- Measurement Range*: -64~1400°C(-83.2~2552°F)
- Probe Accuracy: ±1% of reading or 1°C(1.8°F) whichever is greater(Test under Tamb=23±6°C)
-
Thermocouple Socket
-
Memory
-
Backlight
-
USB
Introduction
-
Feature
- Wide Measurement Range: Infrared up to 1800°C (3272°F)
- High DS (Distance to Spot) Ratio 75:1

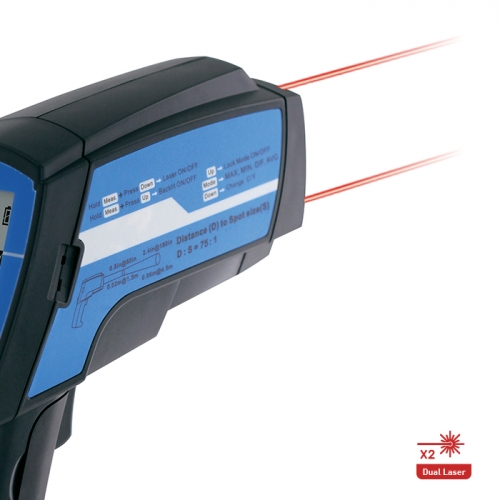

- Dual Laser Points for the Target Spot Size
- Detail Memories with Temperature and Emissivity
- USB Function (optional)
- Mini Thermocouple Socket up to 1400°C
- Min, Max, Dif, Ave, Lock Modes
Built-in Socket
USB (optional)
Memory Mode
Blue Backlight
-
Applications
Metal Processing
Electric Power
Petrochemical
Solar
-
* Specifications are subject to change without noticeTN768LB TN768LC TN768LD Measurement Range 100~1800°C(212~3272°F) -35~1500°C(-31~2732°F) -60~1500°C(-76~2732°F) Full Range Accuracy ±2% of reading ≥0°C: ±2% of reading or 2°C(4°F)
whichever is greater
<0°C: ±(2°C+0.05/°C)°C±2% of reading or 2°C(4°F)
whichever is greaterDistance : Spot 75:1 75:1 50:1 Thermocouple Probe Small Socket, K type, 12 minutes auto power off Measurement Range* -64~1400°C(-83.2~2552°F) Probe Accuracy ±1% of reading or 1°C(1.8°F) whichever is greater(Test under Tamb=23±6°C) For more model information please scroll to the Technology Support and view in Catalogs.
